Sherpa Connection System
Leading technology in standardized wood connector systems
Sherpa Connector systems are concealed timber connection solutions designed to provide strong, precise and efficient structural connections for modern timber construction applications. Suitable for residential and commercial projects, the range supports rapid installation, high load performance and clean architectural finishes.
BENEFITS
- Safety through an approved system
- Multifunctional in strength and use
- Standardised and simple evaluation
- A high degree of pre-fabrication
- Quick assembly
Available at Siegware
A Standardized connections for Timber, CLT and Glulam constructions are available now.

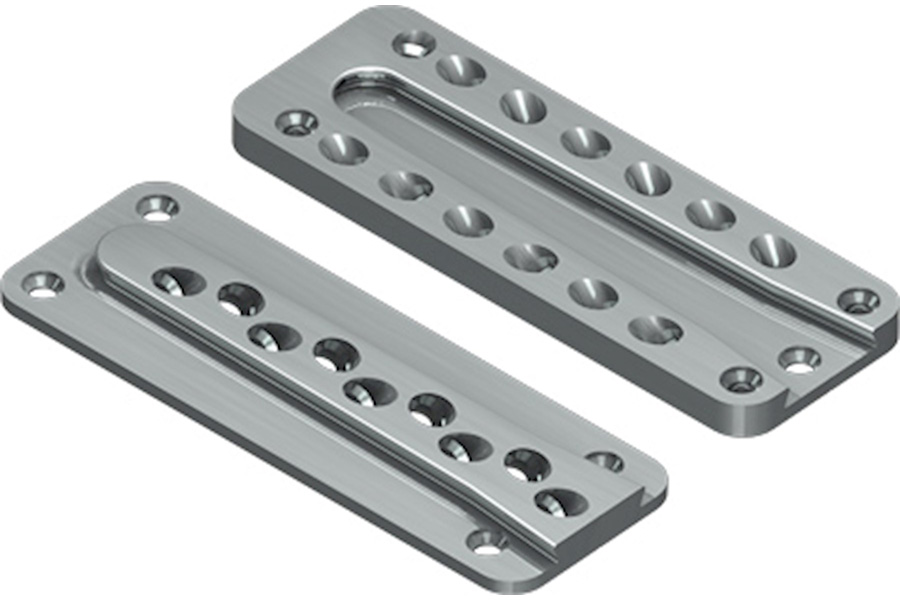

Sherpa Timber Series Connectors
For connections in timber engineering such as roof, wall and beam constructions.
Sherpa timber connectors come in 6 standard widths:
- XS = 30mm width
- S = 40mm width
- M = 60mm width
- L = 80mm width
- XL = 120mm width
- XXL = 140mm width

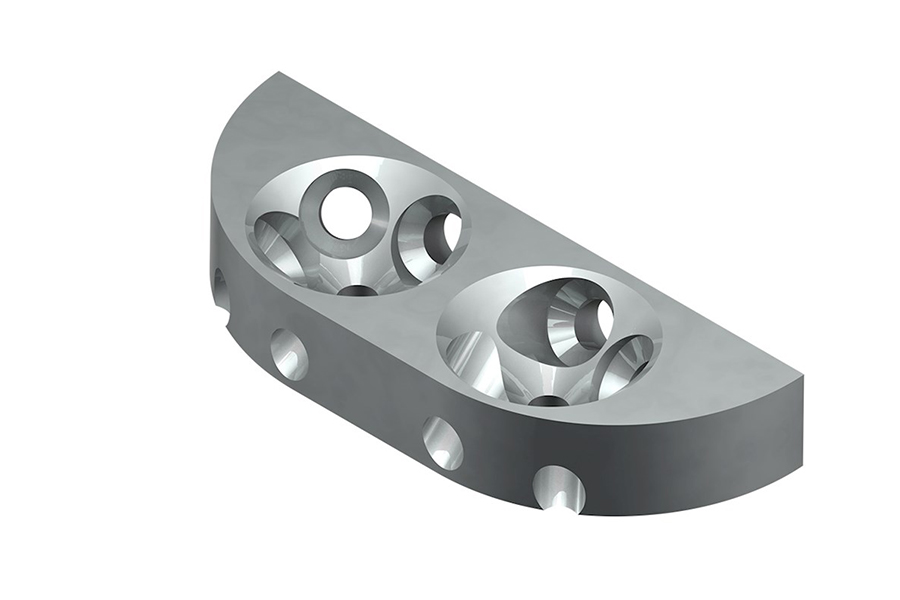

Sherpa CLT Connector
The Sherpa CLT connector is a all rounder connector for CLT applications.
Connection applications include:
- Angle joints
- T-joints
- Longitudinal joints
- Wall to ceiling connection
- Ceiling joints
Optimised for 3 and 5 layer cross laminated timber elements.
The Sherpa CLT Connector is milled flush into the CLT or Glulam for an unobtrusive finish.

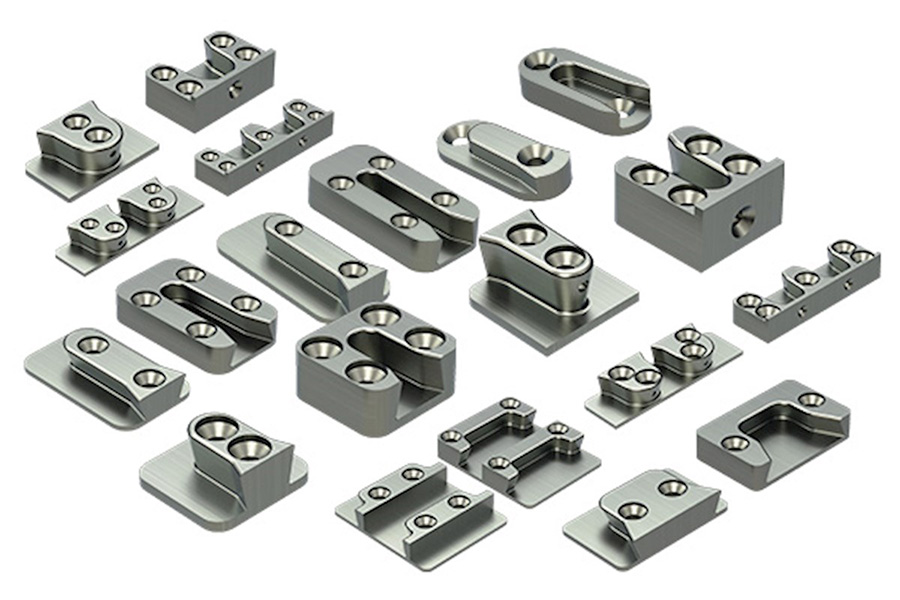

Sherpa Assembly Series Connectors
Practical connectors for the production of non load rated applications such as sunrooms, carports, stairs and furniture. Perfect for professional and DIY projects.

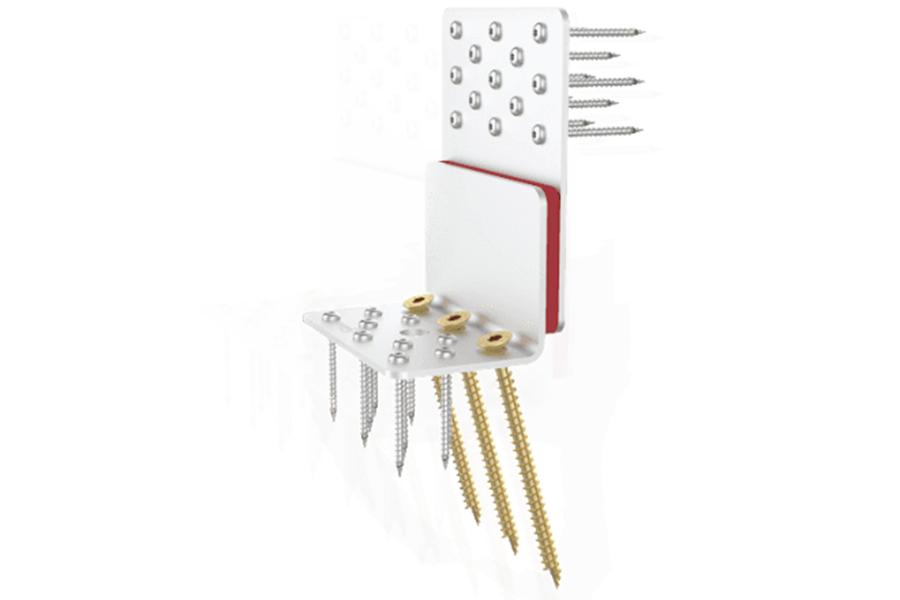

Sherpa Sonus Connector
A truly decoupled sound attentuating connector with no fasteners passing through the vibration bearing.
Available in 2 sizes:
- Sonus M – 115 x 75 x 140mm
- Sonus L – 235 x 75 x 140mm

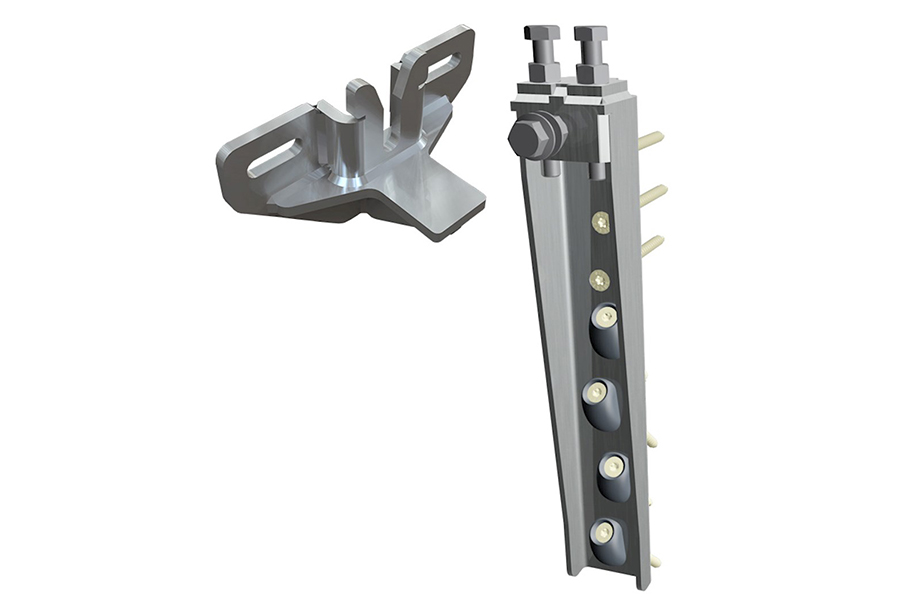

Sherpa EFCON Facade Connector
For the connection of timber elements to load bearing subbases such as exterior wall of new or existing buildings.
Enables mounting and fixing of prefabricated facade elements in timber construction for building high-grade and energy efficient buildings.
The Sherpa EFCON facade connector consists of two component. The smaller part connects to the facade element in a friction type and precise manner. Horizontal and vertical wind forces, dead load, earthquake loads can be diverted to the substrate.

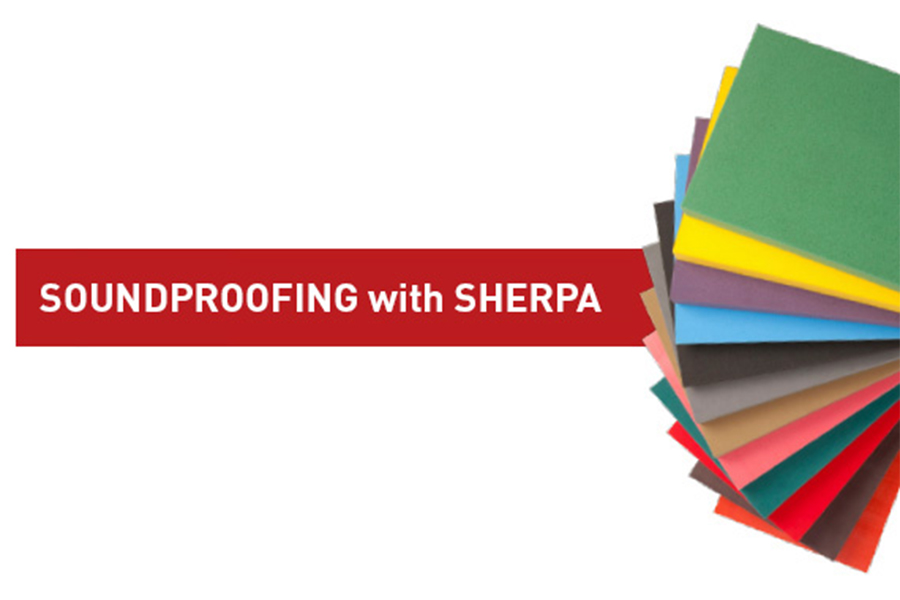

Sherpa Regufoam Soundproof Bearings
Regufoam soundproof bearings are waterproof, rot-proof and made from mixed cellular polyeurethane foam.
- Available in 12 different strength levels distinguished by colour.
- Standard thickness of 12.5 and 25mm
- Wide range of frequency attenuation up to 8 Hertz.
- Area of static application from 0.011 to 2.50 M/mm², dynamic application area up to 3.5N/mm²
- Proven long-term behavior and excellent durability.
